| 音频变压器/信号变压器 |

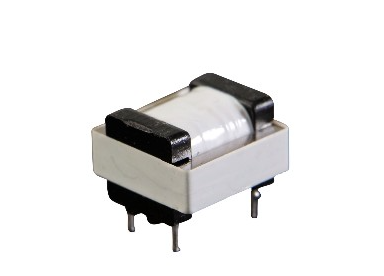

B78419A2251A 3 |
系列:EP10 Applications:Automotive 长度:12.80mmMax. Length (Max.) / mm:12.8 宽度:13.60mmMax. Width (Max.) / mm:13.6 厚度:14.40mm Max. Thickness (Max.) / mm:14.4 电感:7000uHMin. DC电阻-初级Max:0.5mΩ Max. DC电阻-次级Max:3.1Ω Max. Turns Ratio:1:100 耐压Vrms:2.4kVrms 1sec. Recommended RT / Ω:100 Sensed Current / A:30 AEC-Q200:Yes Packing:Blister (Plastic)Taping [330mm Reel] Weight / g:5 工作温度Min:-40℃ 工作温度Max:150℃ |
